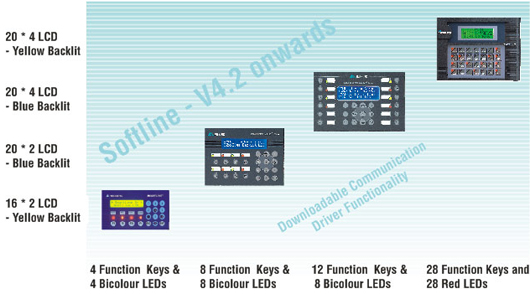

HMI_text_smart_line_at_a_glance

Overview

The SMARTLINE HMI Ex is an advanced Microprocessor based system, which serially communicates with a Programmable Logic Controller. It is a Panel mounted, industrially hardened Operator Panel with choice of 20 ch * 4 Line Display & 20 ch * 2 Line Display: LCD (Blue Backlit with White Text)

Features

  • Keypad & Function Keys: Numeric , Cursor & Definable Function Keys.
  • Communication Driver Update: User can update Driver through SL DESIGNER Software along with Application Project at any stage.
  • Function Key Legends: Legends for the configurable function keys can be defined & replaced quickly.
  • Memory: 16 K Flash memory.
  • Excellent Viewing Characters: Blue Backlit with white Text.
  • User Settable Back Lit On Time Out: Supported.
  • Menu – driven & user friendly Software.
  • Allows addressing of Built-in LEDs mapped in PLC Logic.
  • Facilitates message programming from 1 line to 4 lines.
  • Comprehensive documentation facility.
  • Drivers update facility through SL DESIGNER along with Application Program at any stage.
  • Import of Messages from existing Program is supported.

Programming

  • Software CD – SL DESIGNER, HMI Ex Configuration Package
  • Serial Link Programming Cable – 9910
  • Manual – SL DESIGNER & SMARTLINE HMI Ex
Sr No. Description Ordering Code
1. SMARTLINE Jr. HMI Ex with 20 Ch.* 2 Line LCD
(Blue Backlit)
SL Jr. Ex 2002
2. SMARTLINE Sr. HMI Ex with 20 Ch.* 4 Line LCD
(Blue Backlit)
SL Sr. Ex 2004

Model

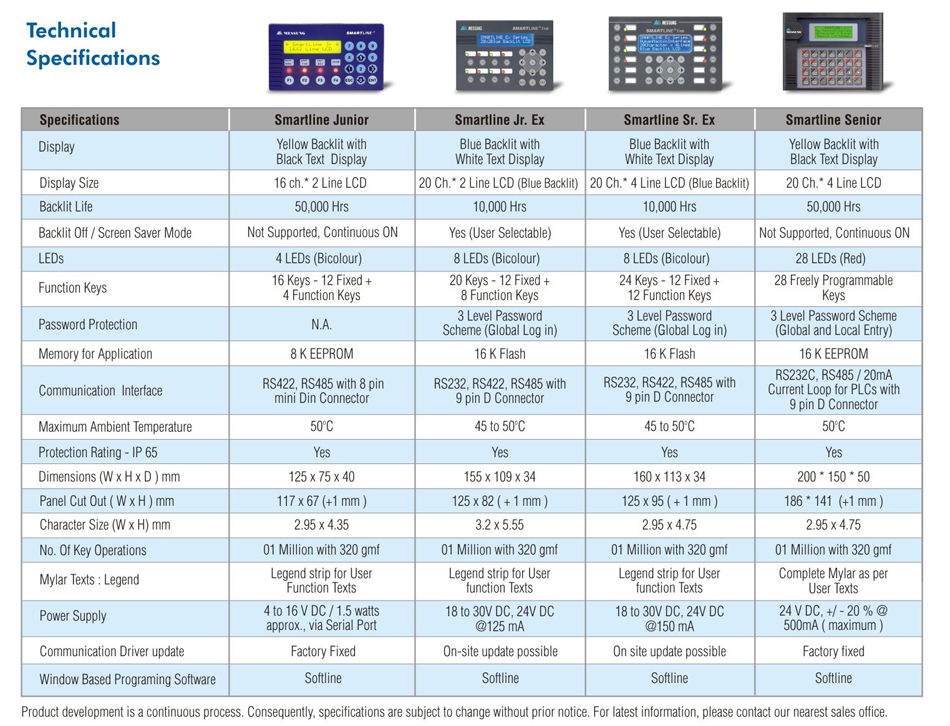

Product Specification
HMI_text_smart_line_product_spec_big

HMI Ex to PLC link cable details
HMI_text_smart_line_cable
Dimension details for panel cutout
HMI_text_smart_line_dimention
